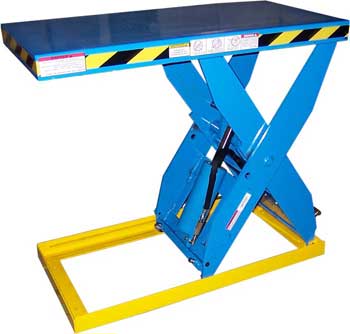

The MAX-M22 series lift table is designed for those medium duty applications
where a lift table is required. Similar in design to premium MAX-LIFT series
the M22 is a quality table that offers an economical solution.
|
2,200 lb Capacity
36" Vertical Travel
7.25" Lowered
43" Raised
Magnetic-backed control box or optional foot control allows operator to position
the load at the ideal height
Motors and controls are easily accessible
|
|
4 Standard Tops Available
(others upon request)
High quality Camrollers, Pivot Pins and Bearings
Intergral, retractable maintenance safety bars
All wielded construction meets AWS standard service
Tables conform to or exceed ANSI MH 29.1-1994
|
|
The best value in lift tables! Reduces awkward bending and lifting since the work load is always at the correct
level. The MAX-M22 table line offers the following standard features:
|
- Trapped top and bottom scissor arms
- Built-in safety bars
- Life Time lubricated bearings
- Magnetic-backed control box
- High quality fit and finish
|
|
|
|
Model M22-36
|
|
Capacity
|
2,200 lbs
|
|
Edge Load Capacity*
|
1,500 lbs
|
|
Table Size Standard*
|
24" x 48"
|
|
Base Size
|
24" x 48"
|
|
Lowered Height
|
7.25"
|
|
Raised Height
|
43.25"
|
|
Vertical Travel
|
36"
|
|
Motor
|
1 HP
|
|
Voltage
|
115 V Single Phase
|
|
Quote
|
|
Standard Options Available
|
T1 - 36" x 48" Top
|
|
T2 - 48" x 48" Top
|
|
T3 - 42" x 60" Top
|
|
Foot Controls
|
|
Casters 2 Rigid / 2 Swivel with Brakes
|
|
Semi-Live Dolly Jack Handle and Casters
|
|
Accordion Safety Skirting
|
Standard Table Size 24" x 48"
|
Optional Accordion Sfaety Skirting
|
-*Capacity is based on uniform load. Offset load with oversize top can reduce capacity by 50%
-Internally mounted 1 HP 115 Volt TENV motor. 115 Volt operating control voltage.
-NEMA constant pressure. Magnet backed up/down push button control station with 10' straight cord.
-NEMA - 1 prewired controls and electrical connectors. Control box contains contactor and control transformer.
-Cylinders with internal stops.
-10 ft. power cord. (Connector not included)
-Hard chrome plated, pollished shafting and hydraulic cylinder piston rods.
-Surface degreased, descaled, and finished with Safety Yellow and Blue color.
-Smooth steel top with yellow and black safety stripes.
-S.A.E. hoses and fittings.
-Integral safety restraint maintenance bars.
-Internal gear pump with check valve, relief valve, solenoid valve.
-Includes hydraulic oil and filter.
-Specifications are subject to change without notice.
-Lift Products, Inc products are covered Patents pending and other rights reserved.
|
|
