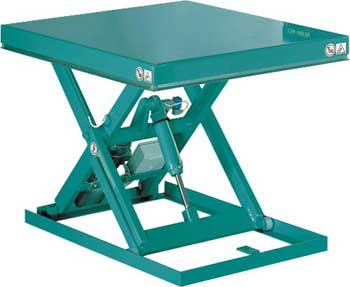

Guardian Lift Table

Guardian

The Guardian Series represents the ultimate in lift table safety with features that are optional or not available on other lift tables.

All "Guardian" Series lift tables meet and exceed both U.S. (ANSI) and European safety standards for lift tables. These models can be used in above-floor or in-floor applications.

Key Features


Three button hand control standard, up, down and reset.

 Guardian Lift Table Controls Guardian Lift Table Features

Safety bar prevents descent on contact with obstruction.
Guardian Lift Literature

Guardian Quote




Additional Features


  • Upper platform fitted with aluminum safety bar preventing descent on contact with obstructions.
  • Low tension (24V) control box with up-down buttons. In addition the "Guardian" Series includes an electric circuit reset button in case the safety perimeter is actuated.
  • Internal power pack equipped with relief flow value for controlled lowering speed. Electric circuit controlled by electronic system. Supply voltage 115 single phase.
  • Self lubricating bushings on pivot points.
  • Single acting cylinders to stop the lift table lowering case of hose burst
  • Safety clearance between scissors to prevent trapping during operation.
  • Mechanical block bars for safety maintenance operations.
  • Removable lifting eye to facilitate handling and lift table installation.
  • Standard motor 1 HP, 115 single phase voltage.


Specifications


Guardian Series Lift Tables
Model Vertical
Travel		 Capacity
(LBS)		 Height Base
Frame		 Platform
Std. Size		 Up
Speed		 Quote
Form
Lower Upper
LPB-10-0 23.25" 1,100 7.875" 31" 29.5" x 39.375" 31.5" x 39.375" 9 sec Quote
LPB-10-1 31.5" 1,100 7.875" 39.375" 29.5" x 49.25" 31.5" x 49.25" 11 sec Quote
LPB-10-2 31.5" 1,100 7.875" 39.375" 29.5" x 49.25" 39.375" x 49.25" 11 sec Quote
LPB-10-3 39.375" 1,100 8.625" 48" 29.5" x 59" 31.5" x 59" 15 sec Quote
LPB-10-4 39.375" 1,100 8.625" 48" 29.5" x 59" 39.375" x 59" 15 sec Quote

Options

  • Foot Controls
  • Portability (2) Fixed Wheels & Dolly Jack
  • Portability (2) Fixed (2) Swivel Casters (add 7.75" to Lowered & Raised Height)
  • Outboard Mounted Casters (add 1.5" to lowered & Raised Height)
  • Caster Brake on Swivel Casters
  • All Swivel Lock Casters in Lieu of (2) Rigid (2) Swivel
  • Floor Lock
  • Fork Pocket (add 3" to Lowered & Raised Height)
