Guardian E-Lift Table

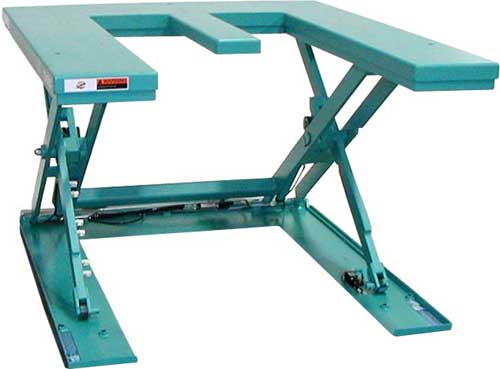

Guardian E-Lift

The E-Lift low profile lift table has all the same features as the U-Lift and the other Guardian low profile tables. The low profile feature provides greater flexibility since a variety of applications can be accommodated. Also, installation costs are reduced since the need for a floor pit is eliminated.

The advantage of the E-Lift is the center opening measures 28.9" which is ideal for a standard 27" wide pallet truck. The added center support of the E-Lift is designed to help prevent the pallet from deflecting downward in the center due to the wider center area. The center support is shorter than the outside legs to allow easier access with the pallet truck.

The E-Lift, available with a 2,200 lbs capacity, is designed for use with open bottom pallets, skids, containers or wire baskets.

Features

U-Lift with Pallet Truck

Load and unload pallets onto the Guardian U-Lift without the need for a loading ramp.

Guardian Control Box

Three-button control box has 115 voltage single phase standard 2,200 lb. capacity units.


  • Upper platform fitted with safety perimeter which prevents descent on contact with obstructions
  • Upper limit switch
  • External power unit equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Supplied with 8 ft. long hoses.
  • 115 voltage single phase standard on 2,200 lb capacity units. 230/460 volt 3 phase standard on 3,300 lb units.
  • Low tension (24v) control box with up-down buttons
  • Single acting cylinders with drainage system and check valve to stop the lift from lowering in
  • Safety clearance between scissors to prevent trapping during operations
  • Mechanical blocks for safe maintenance operations
  • Self-lubricating bushings on pivot points.
  • Removable lifting eye(s) to facilitate handling and installation of the lift table Bearings
Guardian E-Lift Literature

E-Lift Quote

Specifications



Guardian Series E-Lift Tables
Model Vertical
Travel		 Capacity
(LBS)		 Height Base
Frame		 Platform
Std. Size		 Up
Speed		 Motor Quote
Form
Lower Upper
LPBLE-20-1 30.75" 2,200 3.125" 33.875" 54" x 52" 55.875" x 50" 18 sec 1 HP Quote




Options

E-Lift Pedestal Stand


Options include:

  • Pedestal Stand for Controls
  • Foot Control Switch
  • 230/430 3 phase
    for LPBLU-20-1
