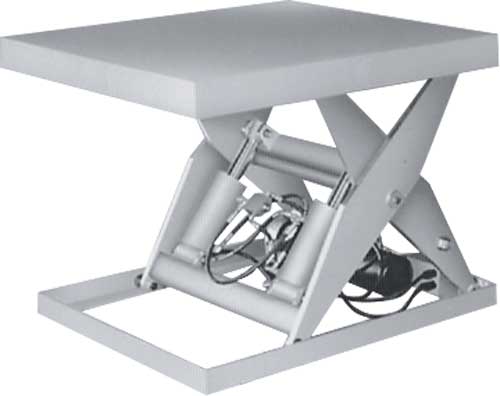

SXT Stainless Steel Lift Table

SXT

Ideal for use in wash down area, the SXT has a passivated sanitary finish and all dead end spaces have been eliminated.

In addition to the many ergonomic benefits derived by using lift tables, the SXT also meets the complex requirements demanded by the food processing, chemical and pharamaceutical industries.

Standard Features


  • Passivated finish for in-place wash down
  • Self contained stainless steel enclosed power unit
  • Actuation: Dual, low pressure hydraulic cylinders,
    SST powder coated
  • T304 Stainless steel construction
  • Push Button Pendant Controls
  • Up / Down Foot Pedal Controls
  • 110 volt AC TEFC Motor


Specifications

Stainless Steel SXT Series
Model Vertical
Travel		 Capacity
(LBS)		 Height Base
Frame		 Platform
Std. Size		 Up
Speed		 Motor
Lower Upper
SXT-040-36 25" 4,000 9.3125" 36" 35.5" x 45" 42" x 48" 30 sec 1 HP
SXT Quote





SXT Specification Drawing 1 SXT Specification drawing 2
SXT Specification Drawing 3

Options



SXT with Rotating Top
  • Rotating Top
  • Semi-Portable
  • Foot Controls
  • Custom Sizes
