Double Wide Max-Lift Table

Double Wide Max-Lift

The term double wide is exactly that. It's two scissor assemblies welded into one frame. The purpose of this is to offer wider tops that are not available with a single scissors.

A standard rule is that the table top cannot be 2 feet wider than the base frame. An example of this is that a 48" wide base table can have up to a maximum top width of 72". However, if this was a double wide 48" wide base, the top could be 12 feet wide.

The other benefits of double wide base tables are increased capacity and increased edge loading

Features

  • Built in safety bars
  • Trapped top & bottom scissor arms
  • Grease fittings on pivot points & cam rollers
  • NEMA constant pressure. Magnetic backed control box
  • NEMA-1 prewired controls and electrical connectors. Control box contains contactor, control transformer, thermal overload and fuse
  • All controller components meet UL and/or CSA specifications
  • High Quality Camrollers, Pivot Pins and Bearings
  • Captured 'Lift-Lok' secures top and base leg rollers
  • All welded construction meets AWS standard service
  • Table conform to or exceed ANSI MH 29.1-1994
  • Easily accessible motor and controls
  • S.A.E. hoses and fittings
  • Internally mounted 1.5 HP 115/230V-I-60 or 230/460-3-60 intermittent duty TENV super torque motor
  • 115V operating control voltage
  • Cylinders with internal stops.
  • 10 ft. power cord (connector not included)
  • Hard, chrome plated, polished shafting hydraulic cylinder piston rods
  • Surfaces degreased, descaled and finished with Safety Yellow and Blue enamel
  • Smooth steel tops with yellow and black safety stripes
  • Internal gear pump with check valve, relief valve and solenoid valve
  • Includes hydraulic oil and filter

Max Lift Quote
Max Lift Literature




Specifications


36" Vertical Travel Models
Model Vertical
Travel		 Capacity
(LBS)		 Height Platform Base
Frame		 Edge Loads (LBS) Cylinder
(# of)		 Motor
(HP)		 Quote
Form
Lower Upper STD MAX Static Rolling
LPT-020-36XXW 36" 2000 7.75" 43.75" 50" x 50" 100" x 50" 50" x 50" 2000 1500 2 1.5 Quote
LPT-030-36XXW 36" 3000 7.75" 43.75" 50" x 50" 100" x 50" 50" x 50" 3000 2000 2 1.5 Quote
LPT-040-36XXW 36" 4000 7.75" 43.75" 50" x 50" 100" x 50" 50" x 50" 3000 2350 2 1.5 Quote
LPT-060-36XXW 36" 6000 7.75" 43.75" 50" x 50" 100" x 50" 50" x 50" 3500 2350 4 1.5 Quote
LPT-080-36XXW 36" 8000 7.75" 43.75" 50" x 50" 100" x 50" 50" x 50" 3500 2350 4 2 Quote

48" Vertical Travel Models
Model Vertical
Travel		 Capacity
(LBS)		 Edge Loads (LBS) Height Platform Base
Frame		 Cylinder
(# of)		 Motor
(HP)		 Quote
Form
Static Rolling Lower Upper STD MAX
LPT-020-48XXW 48" 2000 2000 1500 8" 56" 52" x 66" 100" x 96" 52" x 66" 2 1.5 Quote
LPT-030-48XXW 48" 3000 3000 2000 8" 56" 52" x 66" 100" x 96" 52" x 66" 2 1.5 Quote
LPT-040-48XXW 48" 4000 3000 2000 8" 56" 52" x 66" 100" x 96" 52" x 66" 2 1.5 Quote
LPT-060-48XXW 48" 6000 3500 2350 8" 56" 52" x 66" 100" x 96" 52" x 66" 4 1.5 Quote
LPT-080-48XXW 48" 8000 3500 2350 8" 56" 52" x 66" 100" x 96" 52" x 66" 4 1.5 Quote

60" Vertical Travel Models
Model Vertical
Travel		 Capacity
(LBS)		 Edge Loads (LBS) Height Platform Base
Frame		 Cylinder
(# of)		 Motor
(HP)		 Quote
Form
Static Rolling Lower Upper STD MAX
LPT-020-60XXW 60" 2000 2000 1500 8.5" 68.5" 52" x 86" 100" x 86" 52" x 86" 2 1.5 Quote
LPT-030-60XXW 60" 3000 3000 2000 8.5" 68.5" 52" x 86" 100" x 86" 52" x 86" 2 1.5 Quote
LPT-040-60XXW 60" 4000 3000 2000 8.5" 68.5" 52" x 86" 100" x 86" 52" x 86" 2 1.5 Quote
LPT-060-60XXW 60" 6000 3500 2350 8.5" 68.5" 52" x 86" 100" x 86" 52" x 86" 4 1.5 Quote
LPT-080-60XXW 60" 8000 3500 2350 8.5" 68.5" 52" x 86" 100" x 86" 52" x 86" 4 2 Quote

Options


Electrical Options
Foot Control Switch
Up-Down Push Button with Key Lock-Out
Adjustable Limit Switch
Adjustable Lower Limit Switch
24 Volt D.C. Power Unit
Mechanical Options
Portability (2) Fixed Wheels and Dolly Jack
Portability (2) Fixed (2) Swivel Casters to 3,500LBS (+7.75" to Lowered Height)
Portability (2) Fixed (2) Swivel Casters to 6,000LBS (+9" to Lowered Height)
Caster Brakes on Swivel Casters

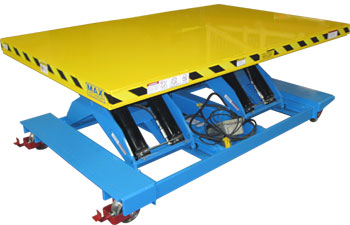

Outboard Mounting of Casters w/Standard Lowered Height
Outboard Mounting of Casters (+1.5" to Lowered Height, Min. Platform 43")
All Swivel Lock Casters in Lieu of 2 Rigid - 2 Swivel
Floor Lock
Push Handle for Caster Tables
Fork Pockets (add 3" to Lowered Height)
Hydraulic Fuse (Price Per Cylinder)
Handrail Gate

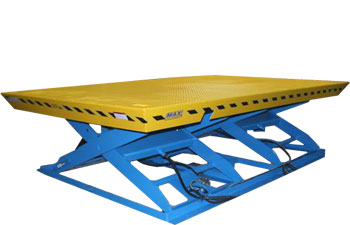

Pit Frame (For Pit Mounted Tables, add to Tapered Toe Guard Option)
Hydraulic Options
Remote Power Unit Pump & Motor Only 5' Hose
Remote Power Unit Pump, Motor & Tank
Adjustable Flow Valve for Lowering
Low Temperature Hydraulic Oil
