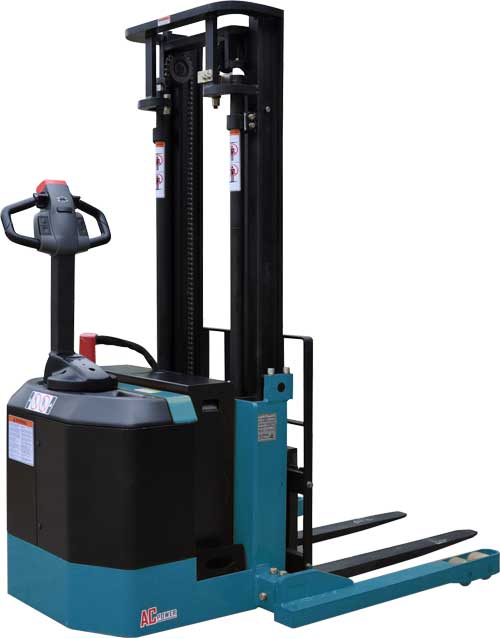

MXS-14 Straddle Truck

MXS-14 Straddle Stacker

The Redline Stacker MXS-10 Series is a highly manuverable straddle truck that comes in two capacities and three mast heights. Great for warehousing or general purpose use.

Features


  • Ergonomic design - extra large push buttons for raise, lower and horn functions
  • Large safety reversing button propels truck away from operator if contact with operator is made while unit is in reverse mode
  • Dual forward/reverse grip controls for thumb operation
  • Automatic "dead-man" type braking with power cut-off switch when brake is applied
  • 24 volt DC drive motor with all gear final drive
  • Key switch
  • Emergency power disconnect button
  • Battery indicator meter
  • Programmable electronics allow customer setting
  • Safety screening protects operator during lifting and lowering
  • Advanced Curtis PMC drive controller gives smooth, step-less acceleration and infinitely variable speed control providing superior command of the truck. The anti-rollback system delivers maximum power when required for uphill or down-hill gradients
  • High visibility is specially designed on mast with laterally mounted lifting cylinder
  • Electromagnetic disc brake connected to drive shaft
  • The CURTIS PMC has adjustable neutral braking, plugging, and regenerating braking
  • Heavy duty motor, gear pump, relief valve
  • Overload pressure relief valve protects system from pressure overload and bypasses oil
MXS-14 Quote

Specifications


MXS-14: Walkie Adjustable Straddle Truck
Model Capacity Max Lift Height Mast Extended Height Mast Lowered Height Quote Form
MXS-14-30-118 3,000 Lbs. 118" 165" 84" Quote
MXS-14-30-130 3,000 Lbs. 130" 177" 84" Quote
MXS-14-30-142 3,000 Lbs. 142" 189" 92" Quote
MXS-14-30-157 3,000 Lbs. 157" 205" 100" Quote
MXS-14-35-118 3,500 Lbs. 118" 165" 84" Quote
MXS-14-35-130 3,500 Lbs. 130" 177" 84" Quote
MXS-14-35-142 3,500 Lbs. 142" 189" 92" Quote
MXS-14-35-157 3,500 Lbs. 157" 205" 100" Quote
The above models have the following in common:
Load Center 24" Min. Turning Radius 58"
Lowered Height of Fork 2" Adjustable Straddle OD 46"/52"/58"
Standard Fork Length 44" Adjustable Straddle ID 38"/44"/50"
Max. Travel Speed Loaded 2.0 Mph Chasis Length 30"
Unloaded 2.5 Mph Chasis Width 33"
Max. Lift Speed Loaded 5.12"/sec Wheels Poly
Unloaded 9.05"/sec Drive Wheels 10" x 3"
Max. Lowering Speed Loaded 5.12"/sec Load Wheels 3.3" x 2.8"
Unloaded 9.05"/sec Caster Wheels 6" x 2"
Max 24V Battery Size (LxWxH) 32.4x9.76x24.02 Wheel Base 51"
