MXSA Walkie Stacker

Request MXSA Quote

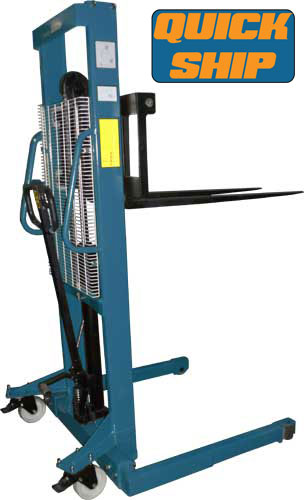

MXSA Walkie Stacker

The MXSA manually pushed walkie behind straddle stacker with manual pump up lift is an economic solution for pallet handling applications in which the frequency of lifting is occasional. It can be used in a variety of material handling applications where the capacities are relatively light and the distances being traveled are short. A common application is for the loading and unloading of a couple pallets from a semi-truck but it can also be used as a mobile work positioner and for stacking pallets on top of one another.

The manually powered lift can be actuated by pumping the handle similar to the how a standard pallet jack operates. A built-in foot pump is also available and comes standard with the unit. Lowering of the load is accomplished by use of the release lever on the handle.

The MXSA features both adjustable forks and adjustable straddle legs, a operator safety screen which provides a barrier between the user and the cylinder, and a 4 bolt pattern on the load casters for exceptional caster life.

The MXSA features both adjustable forks and adjustable straddle legs, a operator safety screen which provides a barrier between the user and the cylinder, and a 4 bolt pattern on the load casters for exceptional caster life.

Request MXSA Quote

Entrapped Rollers

Entrapped Rollers

Rollers for the fork carriage are entrapped within a steel "C" channel providing secure placement of loads.

Ergonomic Handle

Ergonomic Handle

Comfortable handle with "lift", "lower" and "neutral" lever. Pumps up the fork carriage similar to a pallet jack.

Foot Pump

Foot Pump

Forks can be raised by either the foot pump or by pumping the handle, allowing for the operator to decide.

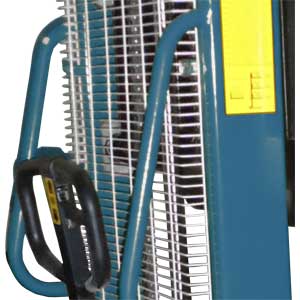

Push Handles

Push Handles

Dual push handles, located at an ergonomic height, reduce the amount of effort required to transport the load.

Specifications


ModelVertical
Travel
CapacityHeightStraddleForksMast HeightQuote
Form
DownUpIDWLWODDownUp
MXSA-6259"2,200 lbs3"62"38"/42"/46"/50"6"42"4"8.5"-32"82"82"Quote
ModelMXSA-62
Travel59"
Capacity2,200 lbs
Lowered Height3"
Raised Height62"
Straddle ID38"/42"/46"/50"
Straddle Width6"
Fork Length42"
Fork Width4"
Fork OD8.5" - 32"
Mast Lowered82"
Mast Raised82"
Steering Wheels6"ø
Front Wheels3.75"ø
Weight700 lbs
Quote FormQuote

Standard Features


  • Adjustable forks
  • Adjustable straddle legs
  • Ergonomic handle
  • 3 position control lever
  • Hydraulic pump handle
  • Hydraulic foot pump
  • 4 bolt pattern steer casters
  • Operator safety screen
  • Push handles
  • Entrapped rollers
