In addition to offering all the safety features of our
regular "Guardian" Series lift tables, our low profile
models have a lowered height of only 3 1/4". The low profile
feature provides greater flexability since a variety of
applications can be accommodated. And, installation costs
are reduced since the need for a floor pit is eliminated.
With capacities ranging from 1,100 pounds to 3,300 pounds,
the "Guardian" Series low profile lift tables are
available in three versions with either a rectangular, "U"
or "E" shaped top for numerous material handling applications.
The "U" shaped low profile table is ideal for handling wire
baskets, containers and plastic and wooden pallets that have
open bottoms. This design allows loading with either a
manual or electric pallet truck without the need for a
loading ramp.
The "E" shaped low profile table has all the features as the
U-Lift and the other Guardian low profile tables. It is available
in a 2,200 lb capacity. The advantage of the E-Lift is the center
opening measures 28.9" which is ideal for a standard 27" wide pallet
truck. The added center support of the E-Lift is designed to help
prevent the pallet from deflecting downward in the center due to the
wider center area. The center support is also shorter than the outside
legs to allow easier access with the pallet truck. The E-Lift like
the U-Lift is designed for use with open bottom pallets, skids, containers
or wire baskets. |
|
|
|
|
Standard Features
The "Guardian" Series meets and exceeds both U.S.
(ANSI) and European safety standards.
- Upper platform fitted with safety perimeter, which
prevents descent on contact with obstructions.
- Low-tension (24V) control box with up-down buttons.
In addition the "Guardian" Series includes an
electric circuit reset button in case the safety
perimeter is actuated.
- New design external power pack equipped with a relief
valve against overloading and a compensated flow
valve for controlling lowering speed. The power pack
is supplied with hoses 8' long.
- 115 voltage single phase standard on 1,100 lb. and
2,200 lb. capacity units. 230/460 voltage three
phase standard on 3,300 lb. units.
|
|
- Upper limit switch.

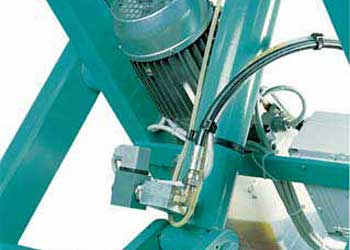

- Single acting cylinders with drainage system and
check valve to stop the lift table lowering in case
of hose burst.
- Safety clearance between scissors to prevent trapping
during operations.
- Mechanical blocks for safe maintenance operations.
- Self-lubricating bushings on pivot points.
- Removable lifting eye(s) to facilitate handling and
installation of the lift table.
- Motor 1 HP.
|
"U"-Shaped Applications
|
Standard Low Profile Applications
|
|
|
Floor Mount
The floor mount power unit has the pump motor and tank
on the plate frame. This is ideal for placing the power
unit under a conveyor or work bench or when locations
are required. Features 8' hoses, power cord and control
cord. Three-button control box has 115 voltage single
phase standard on 1,100 lb. and 2,200 lb. capacity units.
230/460 voltage three phase on 3,300 lb. units.
|
|
|
Guardian Series
Low Profile Lift Tables
|
|
Model
|
Vertical
Travel
|
Capacity
(lbs)
|
Platform
Size
|
Base
Frame
|
Lowered
Height
|
Raised
Height
|
Lift Speed
(Seconds)
|
Motor
(HP)
|
Quote
|
|
LPBL-10-1
|
30 3/4"
|
1,100
|
31 1/2" x 55"
|
29" x 52 3/4"
|
3 1/4"
|
34"
|
10
|
1
|
Quote
|
|
LPBL-10-2
|
30 3/4"
|
1,100
|
39 1/2" x 55"
|
29" x 52 3/4"
|
3 1/4"
|
34"
|
10
|
1
|
Quote
|
|
LPBL-20-1
|
30 3/4"
|
2,200
|
31 1/2" x 55"
|
29" x 52 3/4"
|
3 1/4"
|
34"
|
18
|
1
|
Quote
|
|
LPBL-20-2
|
30 3/4"
|
2,200
|
39 1/2" x 55"
|
29" x 52 3/4"
|
3 1/4"
|
34"
|
18
|
1
|
Quote
|
|
LPBL-30-1
|
29 1/2"
|
3,300
|
31 1/2" x 61"
|
29" x 52 3/4"
|
3 5/8"
|
33 1/8"
|
25
|
1
|
Quote
|
|
LPBL-30-2
|
29 1/2"
|
3,300
|
39 1/2" x 61"
|
29" x 52 3/4"
|
3 5/8"
|
33 1/8"
|
25
|
1
|
Quote
|
|
"U" Shaped Lifts
|
|
LPBLU-20-1
|
30 3/4"
|
2,200
|
44 7/8" x 56"*
|
42" x 52"
|
3 1/8"
|
33 7/8"
|
18
|
1
|
Quote
|
|
LPBLU-30-1
|
29 1/2"
|
3,300
|
45 5/8" x 59 7/8"*
|
43" x 56 1/4"
|
3 5/8"
|
33 1/8"
|
25
|
1
|
Quote
|
|
"E" Shaped Lift
|
|
LPBLE-20-1
|
30 3/4"
|
2,200
|
55 7/8" x 50"
|
54" x 52"
|
3 1/8"
|
33 7/8"
|
18
|
1
|
Quote
|
|
Options:Pedestal Control Station, Loading Ramp
|
|
*Clearance between platform on U-shaped base is 23".
Loading ramps match width of table and are available in 32"
or 48" lengths. Custom ramps are available. Other sizes:
Contact Factory.
Capacity based on evenly distributed loads. Dimensions shown
+/- 1/8".
|
|
|
|
