Ergo Tilter

Maxx-Ergo Tilter

The Maxx-Ergo Tilters are designed to tilt containers, tubs, wire baskets, and boxes or anywhere where tilting will allow easier access to retrieving or placing parts into a container. The manual pump tilt is an economical solution to placing the container at the right tilt angle for the best ergonomic solution. With a tilt range of 0-40° and capacity of 2,000-3,000 lbs. the Ergo-Tilter Series can handle most applications.

The base model has a lowered height of 9". The adjustable height base frame has a height adjustment of 18" - 22". Optional caster can be added to either the standard or adjustable height models (adding an additional 7-1/2" to the height). A fixed raised base can be ordered. A 4" lip is standard on all models and custom lips are available. Fork pockets are standard on all models. Contact Us for special applications.

Standard Features


  • Tilt Range: 0° - 40°
  • Tilt Adjustment 1° per pump
  • Dual Pump Levers for easy adjustment
  • Manual Lowering control valve
  • Side edges to contain load
  • Fork Pockets
  • 4" Lip on hinged ends
  • Capacity 2,000-3,000 lbs
9" Lowered Height Adjustable Raised Base Casters
Ergo Tilter Quote Ergo Tilter Lit
Optional Features:
  • Adjustable Height Raised Base
  • 4" Caster 2 Fixed 2 Swivel
  • Fixed Raised Base Frame
  • Special Lip Height
  • Custom Sizes

Specifications

Maxx-Ergo Tilter - Standard Models
Model Capacity Platform
Size
Lowered
Height
Tilt
Angle
Weight Quote
Form
LPDW-1-20 2,000 lbs 24" x 36" 9" 0-40° 150 lbs Quote
LPDW-2-20 2,000 lbs 32" x 36" 9" 0-40° 165 lbs Quote
LPDW-3-20 2,000 lbs 38" x 38" 9" 0-40° 180 lbs Quote
LPDW-4-20 2,000 lbs 42" x 48" 9" 0-40° 190 lbs Quote
LPDW-5-20 2,000 lbs 50" x 48" 9" 0-40° 200 lbs Quote
LPDW-1-25 2,500 lbs 24" x 36" 9" 0-40° 160 lbs Quote
LPDW-2-25 2,500 lbs 32" x 36" 9" 0-40° 175 lbs Quote
LPDW-3-25 2,500 lbs 38" x 38" 9" 0-40° 190 lbs Quote
LPDW-4-25 2,500 lbs 42" x 48" 9" 0-40° 210 lbs Quote
LPDW-5-25 2,500 lbs 50" x 48" 9" 0-40° 215 lbs Quote
LPDW-1-30 3,000 lbs 24" x 36" 9" 0-40° 165 lbs Quote
LPDW-2-30 3,000 lbs 32" x 36" 9" 0-40° 180 lbs Quote
LPDW-3-30 3,000 lbs 38" x 38" 9" 0-40° 195 lbs Quote
LPDW-4-30 3,000 lbs 42" x 48" 9" 0-40° 215 lbs Quote
LPDW-5-30 3,000 lbs 50" x 48" 9" 0-40° 220 lbs Quote
Maxx-Ergo Tilter - Adjustable Height Models
Model Capacity Platform
Size
Adj.
Height
Tilt
Angle
Weight Quote
Form
LPDW-1-20-AH 2,000 lbs 24" x 36" 18" - 22" 0-40° 200 lbs Quote
LPDW-2-20-AH 2,000 lbs 32" x 36" 18" - 22" 0-40° 215 lbs Quote
LPDW-3-20-AH 2,000 lbs 38" x 38" 18" - 22" 0-40° 230 lbs Quote
LPDW-4-20-AH 2,000 lbs 42" x 48" 18" - 22" 0-40° 240 lbs Quote
LPDW-5-20-AH 2,000 lbs 50" x 48" 18" - 22" 0-40° 250 lbs Quote
LPDW-1-25-AH 2,500 lbs 24" x 36" 18" - 22" 0-40° 210 lbs Quote
LPDW-2-25-AH 2,500 lbs 32" x 36" 18" - 22" 0-40° 225 lbs Quote
LPDW-3-25-AH 2,500 lbs 38" x 38" 18" - 22" 0-40° 240 lbs Quote
LPDW-4-25-AH 2,500 lbs 42" x 48" 18" - 22" 0-40° 260 lbs Quote
LPDW-5-25-AH 2,500 lbs 50" x 48" 18" - 22" 0-40° 265 lbs Quote
LPDW-1-30-AH 3,000 lbs 24" x 36" 18" - 22" 0-40° 215 lbs Quote
LPDW-2-30-AH 3,000 lbs 32" x 36" 18" - 22" 0-40° 230 lbs Quote
LPDW-3-30-AH 3,000 lbs 38" x 38" 18" - 22" 0-40° 245 lbs Quote
LPDW-4-30-AH 3,000 lbs 42" x 48" 18" - 22" 0-40° 265 lbs Quote
LPDW-5-30-AH 3,000 lbs 50" x 48" 18" - 22" 0-40° 270 lbs Quote

Application Spot Light: IBC Tote Tilting

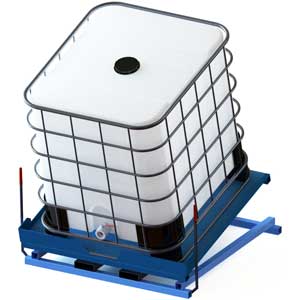

IBC Tote Tilter As the number of IBC totes being used in today's industry continues to grow, often filled with expensive chemicals or food products, the need to completely drain the tote is vital. Lift Products has developed an economical solution to this problem - the MAX-Ergo Tilter.

With a tilt angle up to 20°, simply placing the tote on the MAX-Ergo Tilter offers a more efficient way to drain the tote. We can provide a raised base, allowing the tote to be drained into a smaller container. A custom lip height with cut out for drain plug can also be included.
