Guardian Lift-N-Spin

Lift-N-Spin

With a lowered height of only 4.25", The Lift-N-Spin can be loaded with a manual or electric pallet truck. This is accomplished by the exclusive auto-transition plate.

The Lift-N-Spin has a raised height of 35". This is an ideal height for work positioning applications. The rotating top avoids the need to walk around or reach across.

Exclusive Auto-Transition Plate is a key feature of the Lift-N-Spin. This Auto-Transition Plate provides a smooth surface from the ramp onto the rotating top. Once the lift is raised 1/4" the Auto-Transition Plate automatically lowers to allow the spinning of the rotating top. When the table is fully lowered the Auto-Transition Plate automatically raises again to provide a smooth surface to load the next pallet.

Remote Power Unit features a 1 HP motor. This is a highly efficient and quiet pump motor combination. A three-button control box has 115-volt single phase and runs on a 20 amp circuit. 230/460 3 phase is optional.

Optional, The loading ramp comes in 3 standard sizes: 36", 42", or 48". Custom ramp sizes are available.

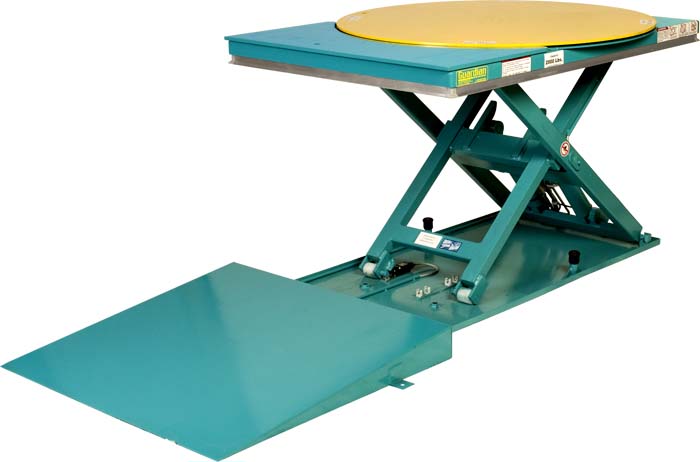

Shown with Optional Loading Ramp

Key Features


Transition Plate

Exclusive Auto Transition Plate

Remote Power Unit
Remote Power Unit
Lift-N-Spin Lowered
4.25" Lowered Height
Guardian Literature Lift-N-Spin Quote


Specifications

Model LPBL-20-2-LS
Capacity 2,000 lbs
Vertical Travel 30.75"
Platform Size 39.5" x 55"
Base Frame 29" x 52.75"
Lowered Height 4.25"
Raised Height 35"
Lift Speed 18 sec.
Motor 1 HP
Quote Form Quote


Additional Features


  • Meets and exceeds both U.S. (ANSI) and European safety standards.
  • Upper platform fitted with safety perimeter, which prevents descent on contact with obstructions.
  • Low-tension (24V) control box with up-down buttons. In addition the "Guardian" Series includes an electric circuit reset button in case the safety perimeter is actuated.
  • New design external power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. The power pack is supplied with hoses 8' long.
  • 115 voltage single phase standard . 230/460 voltage three phase is available as an option.
  • Upper limit switch.
  • Single acting cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
  • Safety clearance between scissors to prevent trapping during operations.
  • Mechanical blocks for safe maintenance operations.
  • Self-lubricating bushings on pivot points.
  • Removable lifting eye(s) to facilitate handling and installation of the lift table.
