U-Lift Table

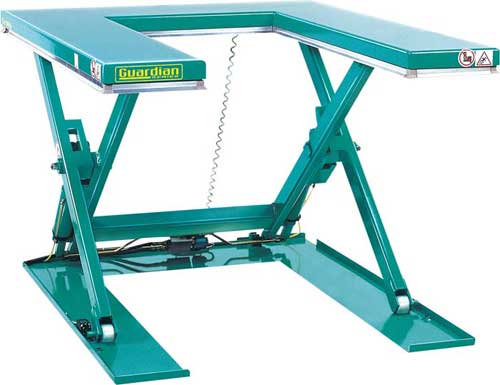

The Guardian U-Lift Tables have all the safety features of our Low Profile Guardian Series Lift Tables. The low profile feature provides greater flexability for tall pallet applications and operator height differences.

The "U" shaped low profile table is ideal for handling wire baskets, containers, plastic and wooden open bottom pallets. This design allows loading with either a 21" wide manual or electric pallet truck without the need for a loading ramp.

Installation costs are reduced since the need for a floor pit is eliminated. In addition, any potential tripping hazard that a ramp might pose is removed.

Installation costs are reduced since the need for a floor pit is eliminated. In addition, any potential tripping hazard that a ramp might pose is removed.

Request A U-Lift Quote

Perimeter Safety Bar

Safety Bar

Aluminium safety bar, stops descent in case of contact with obstructions

Maintenance Bars

Scissor Gaps

Safety clearance between scissors to prevent trapping during operation

Loading with pallet jack

Ground Entry

Open bottom pallets able to be ground loaded with 21" wide jack

Remote Power Unit

Remote Power

1 HP motor and pump combination is a highly efficient and quiet

Specifications


ModelVertical
Travel
CapacityHeightPlatform
Size
Base
Frame
Up
Speed
Quote
Form
LowerUpper
LPBLU-2030.75"2,200 lbs3.13"33.88"50" x 55.88"42" x 52"18 secQuote
LPBLU-3029.5"3,300 lbs3.63"33.88"45.63" x 59.88"43" x 56.25"25 secQuote
ModelLPBLU-20LPBLU-30
Travel30.75"29.5"
Cap.#2,2003,300
Down3.13"3.63"
Up33.88"33.88"
Top50"x55.88"45.63"x59.88"
Speed Sec.1825
Base42"x52"43"x56.25"
FormQuoteQuote

Standard Features


  • Load and unload pallets without the need for a loading ramp
  • Meets and exceeds both U.S. (ANSI) and EU safety standards
  • Upper platform fitted with safety perimeter which prevents descent on contact
  • Low-tension (24V) control box with up-down buttons
  • Electric circuit reset button in case the safety perimeter is actuated
  • External power pack equipped with a relief valve against overloading
  • Compensated flow valve for controlling lowering speed
  • External power pack is supplied with 8' long hoses
  • Upper limit switch
  • Designed for use with a 21" wide pallet jack
  • 115 voltage single phase standard
  • 230/460 voltage three phase available
  • Single acting cylinders with drainage system
  • Check valve to stop the lift table lowering in case of hose burst
  • Safety clearance between scissors to prevent trapping during operations
  • Mechanical blocks for safe maintenance operations
  • Self-lubricating bushings on pivot points
  • Removable lifting eye(s) to facilitate installation of the lift table

Options


Hinged Ramps

Stainless Galvanized

Foot Controls

Foot Controls
