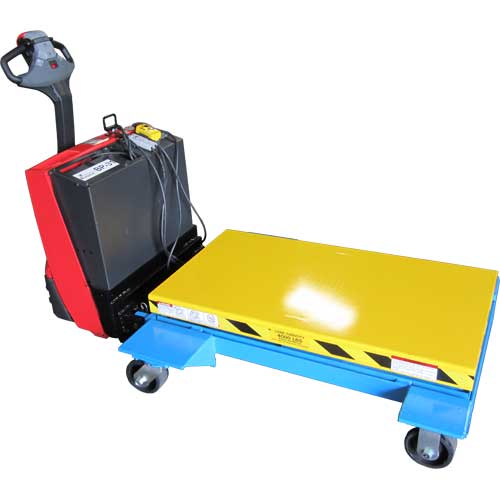

LPT-MGV Mobile Lift Table

The LPT-MGV is an electric hydraulic scissors lift self propelled by a powered pallet jack that has been modified to have its forks removed. The lift table is hinged to the pallet jack, allowing the power head section to float freely from the lift section. This creates a stable lifting platform by allowing all four lift casters to maintain contact with the floor even in situations where the surface may not be entirely level.

The lift runs off an independent motor and shares electrical power with the pallet jack. Controls for the lift are on a magnetic backed hand pendent control which allows the operator to actuate the lift from any position. The drive circuit is made inactive while the lift is in the raised position in order to ensure maximum load stability. The unit features an onboard automatic charger and battery pack.

The LPT-MGV is built-to-order and can be modified in numerous ways. We can customize the platform shape and size to fit specific applications as well as provide a wide range of top platform options including conveyor, ball transfer, UWMH and stainless steel tops.

The lift runs off an independent motor and shares electrical power with the pallet jack. Controls for the lift are on a magnetic backed hand pendent control which allows the operator to actuate the lift from any position. The drive circuit is made inactive while the lift is in the raised position in order to ensure maximum load stability. The unit features an onboard automatic charger and battery pack.

The LPT-MGV is built-to-order and can be modified in numerous ways. We can customize the platform shape and size to fit specific applications as well as provide a wide range of top platform options including conveyor, ball transfer, UWMH and stainless steel tops.

Request LPT-MGV Quote

Zerk Fittings

Zerk Fittings

On camroller and pivot points. Regreasable. Lasts longer than lifetime lubricated bearings. Easily serviced.

Ac Traction Control

AC Traction Control

Smoother speed transitions allow the lift to move an inch at a time to avoid damage in tight spaces.

Trapped Rollers

Trapped Rollers

Captured 'Lift-Lok' secures top and base leg rollers and allows for easy maintenance access when lowered.

Ergonomic Control Handle

Ergonomic Handle

Ergonomically contoured handle features easy‐to‐reach controls that are intuitive to learn and operate.

Specifications


Base
Model
Vertical
Travel
HeightCapacity
(lbs)
Platform SizeQuote
Form
LowerUpperMinMax
LPT-MGV-3636"12"48"
24" x 48"48" x 72"Quote
LPT-MGV-4848"12"60"
25" x 64"48" x 96"Quote
LPT-MGV-6060"12"72"
25" x 84"48" x 108"Quote
ModelLPT-MGV-36LPT-MGV-48LPT-MGV-60
Travel36"48"60"
Down12"12"12"
Up48"60"72"
Cap.#
Min Top24"x48"25"x64"25"x84"
Max Top48"x72"48"x96"48"x108"
FormQuoteQuoteQuote

Standard Features


    Lift Table Features:
  • Heavy duty 24V DC electronics and drive motor
  • 24V DC operating control voltage
  • Constant pressure up-down push controls
  • Cylinders with internal stops
  • S.A.E. hoses and fittings
  • Integral safety restraint maintenance bars
  • NEMA1 prewired controls & electrical connectors
  • Control box contains contactor and fuses
  • Chrome plated shafting cylinder piston rods
  • Surfaces degreased & descaled
  • Surfaces finished with Yellow & Blue enamel
  • Top with yellow & black safety strips
  • Gear pump with check, relief, & solenoid valve
  • Truck inactive while lift is raised
  • Includes hydraulic oil and filter
Pallet Truck Features:
  • Static torque control
  • AC traction control
  • Electric brake release
  • Anti-roll braking
  • Lugged drive tires
  • Programmable parameters
  • Battery Discharge Indicator
  • Snap fit poly carbonate covers
  • Composite bushings
  • Detachable power cord
  • Rubber bumper skirt
  • Ergonomic control handle
  • Precise speed control
  • Secure battery restraints
  • Easy Battery pack access

Options


  • Custom platform sizes
  • Custom platform shapes
  • Conveyor top
  • Radio controlled lift
  • Ball transfer top
  • Removable side walls
  • UHMW top
  • Rotating top
  • Stainless steel top
  • Safety skirting
  • Custom colors
