LPSL-AIR Level Loader

Request LPSL Quote


LPSL-Air

The Air Bag Level Loader is an economical solution for pallet building and work positioning for many applications. The positioner can be disconnected from shop air or a compressor once the airbag is inflated.

As weight is added to the Air Bag Level Loader, it causes the air bag to compress, lowering the height of the platform. As weight is removed, the air bag expand, raising the height of the platform. Once properly calibrated for the maximum load weight using the pressure regulating knob, the lift will automatically stay at an ergonomic height.

Load weight range is 220 lbs. to 4,400 lbs and positions loads between 10.4" and 28". The standard turntable allows for 360° rotation for easy load access. Fork pockets also come standard for repositioning of the air bag level loader. Small base design allows for operator to stand up close to the unit and avoid stretching.

Load weight range is 220 lbs. to 4,400 lbs and positions loads between 10.4" and 28". The standard turntable allows for 360° rotation for easy load access. Fork pockets also come standard for repositioning of the air bag level loader. Small base design allows for operator to stand up close to the unit and avoid stretching.

Request A LPSL Quote

Spring Lift Platform

360° Rotation

Access all sides of the load. Reduce harmful reaching motions. Save time by not walking around.

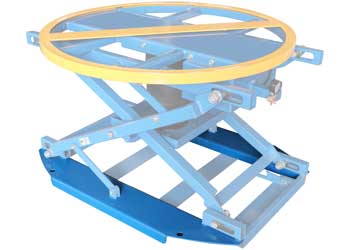

LPSL-Air Fork Pockets

Fork Pockets

Easily reposition by utilizing the standard fork pockets. Pockets are open bottom and 6.5" wide.

Pressure Gauge

Pressure Gauge

Air charging port, pressure gauge, and pressure regulating knob allow for individualization.

LPSL-Air Lowered

Ergonomic Range

Load weight range is 220 lbs. to 4,400 lbs and positions loads between 10.4" and 28".

Specifications


ModelVertical
Travel
Capacity (lbs)HeightPlatform
Size
Base
Frame
Ship
Weight
Quote
Form
MinMaxLowerUpper
LPSL-44-AIR17.6"2204,40010.4"28"44" Dia.36.6" x 45.3"363 lbsQuote
ModelLPSL-44-AIR
Travel17.6"
Min Cap.220 lbs
Max Cap.4,400 lbs
Down10.4"
Up28"
Top44" Dia.
Base36.6" x 45.3"
Weight363 lbs
FormQuote

Options


Semi-Live

Semi-Live Dolly Jack
