MXSE Walkie Stacker

The MXSE can lift and move pallets at a fraction of the cost of sit-down riders while improving workplace ergonomics, productivity and safety for personnel. As a light duty power driven straddle stacker with integral AGM batteries, the MXSE is ideal for those applications that occasionally need to load, unload, transport and stack a multiple pallets.

The compact chassis design of the MXSE also makes it a great mobile work positioner that can move product from work cell to work cell as completed. It is available in both single and two stage masts with lift heights up to 116" and features a permanent magnet drive which reduces maintenance and overall operating cost.

The MXSE is available with both adjustable forks with an OD of up to 29.5" with a standard 32" wide Class II ITA carriage or with rigid forks for applications with open bottom pallets, skids, containers or wire baskets.

The MXSE is available with both adjustable forks with an OD of up to 29.5" with a standard 32" wide Class II ITA carriage or with rigid forks for applications with open bottom pallets, skids, containers or wire baskets.

Request MXSE Quote

Ergonomic Handle

Ergonomic Handle

With infinitely variable speed operation for tight turning in close quarters, safety reversing switch and horn.

Offset Tilter

Offset Tilter

Provides excellent line of sight for operators allowing for right angle stacking in aisles as narrow as 60”.

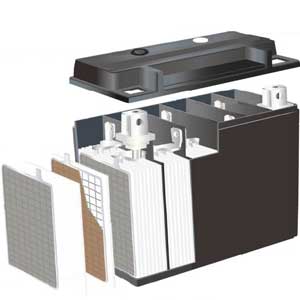

AGM Batteries

AGM Batteries

Integral AGM batteries support opportunity charging & withstands vibration.

PM Drive System

PM Drive System

24V DC permanent magnet drive reduces maintenance and overall operating cost.

Specifications


2,200 Capacity @ 24" Load Center ITA Class II Fork Carriage
ModelLiftHeightFree
Lift
Fork
OD
StraddleQuote
Form
ColExt*IDOD
MXSE22-62R62"78.5"78.3"55.1"21.75"10"19.9"Quote
MXSE22-6262"76.4"83"55.6"8"-29.5"38"-50"44"-56"Quote
MXSE22-9696"70.7"134"0"8"-29.5"38"-50"44"-56"Quote
MXSE22-116116"80.7"153.5"0"8"-29.5"38"-50"44"-56"Quote

Note: Extended height is calculated with a load backrest.

MXSE22-62R6296116
Load Center24"
Capacity #2,200 lbs
Lift62"62"96"116"
Col Height78.5"76.4"70.7"80.7"
Ext Height*78.3"83"134"153.5"
Free Lift55.1"55.6"0"
Fork OD21.75"8"-29.5"
Straddle ID10"38"-50"
Straddle OD19"44"-56"
Quote FormQuoteQuoteQuoteQuote

Note: Extended height is calculated with a load backrest.

Standard Features


  • 24volt Curtis transistor control
  • Efficient 24V permanent magnet drive motor
  • Adjustable straddles or fork over configuration
  • Infinitely variable speed for tight turning
  • Handle with safety reversing switch and horn
  • Maintenance free AGM integral battery pack
  • Built-in automatic 110VAC charger
  • Battery discharge indicator
  • Emergency power disconnect
  • Key switch to limit access to approved personnel
  • Lift cylinder is hard chrome
  • Pump unit with DC motor, solenoid, & gear pump
  • Electronic neutral braking
  • Electromagnetic disc brake
  • Offset steering arm
  • Right angle stacking in aisles as narrow as 60”
  • Travel, lift, and lower functions in handle
  • Angle grips allow easy operation with either hand
  • Low mounted arm for minimum steering effort
  • All steel construction welded rigid steel chassis
  • Fully enclosed wheel guard
  • Flush mounted axles
  • Removable one piece power head cover
  • MXSE22-96/116:
    • Telescoping high visibility mast
    • Inner rail
    • Clear view Plexiglas mast guard
    • Dual lifting chains
    • Adjustable mast rollers

Options


  • Remote Control
  • Slip-on Platform
  • 40" Wide Carriage
  • 36" Long Forks
